Common Nozzle Cap Injection Mold Problems and How SENLAN Solves Them

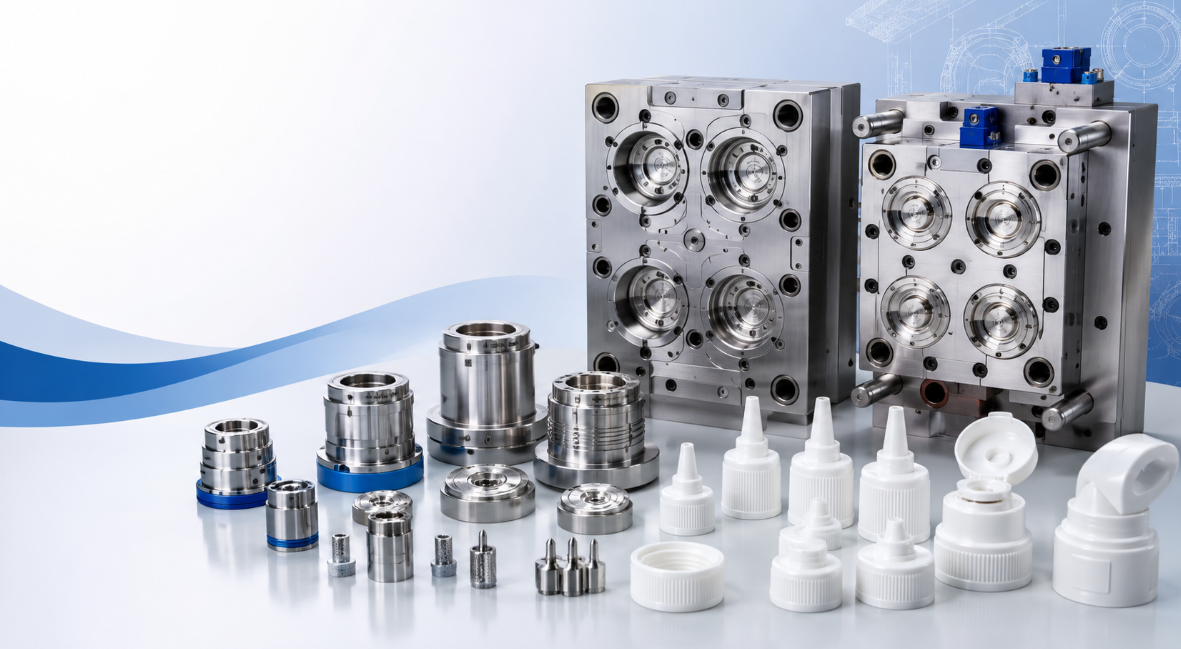

Nozzle caps may look like simple plastic parts, but in real injection molding production, they often require more attention than expected.

A nozzle cap may need to protect a nozzle, seal an outlet, support repeated opening and closing, prevent leakage, or ensure stable assembly with another plastic or metal component. For applications such as medical devices, fluid dispensing systems, cleaning products, bottle closures, plastic spout closures, and packaging components, even a small defect around the sealing area, thread, parting line, or cap-fit structure can affect the final product’s function.

At SENLAN, we do not treat nozzle cap mold problems as isolated molding defects. We usually review them as a combined result of product structure, material behavior, mold design, precision mold components, cooling balance, venting, trial data, and long-term maintenance control.

For customers developing nozzle caps, plastic spout closures, bottle caps, or precision packaging parts, early review of plastic injection molding tooling can help reduce flash, leakage, demolding damage, dimensional drift, and unstable production before mass manufacturing starts.

A good nozzle cap mold should not only produce the first acceptable sample. It should keep sealing, fit, appearance, and cavity consistency stable during long-term production.

Quick Answer

Common nozzle cap injection mold problems usually come from thin-wall filling difficulty, poor venting, cooling imbalance, insufficient draft angle, parting-line wear, unstable gate design, post-shrinkage, and cavity-to-cavity variation.

At SENLAN, we solve these issues by reviewing the mold from a production-stability perspective. We focus on mold cores, cavity inserts, thread cores, sealing inserts, parting-line control, venting, cooling-related risks, ZEISS CMM inspection, and replaceable mold component consistency.

Why Nozzle Cap Molds Are More Difficult Than They Look

A nozzle cap is usually small, but its functional requirements can be strict. Depending on the product application, the mold may need to control:

• thin-wall filling
• cap inner diameter
• sealing surface
• thread or snap-fit structure
• outlet protection area
• demolding stability
• parting-line quality
• surface appearance
• multi-cavity consistency
• long-term wear resistance

The mold may also need to run in high-cavity production, such as 16, 32, or 48 cavities. In that situation, an average qualified result is not enough. Each cavity must remain stable.

For nozzle cap, closure, medical, packaging, and spout-related products, mold quality should not be judged only by the first trial sample. It should be judged by whether the mold can support repeatable production with controlled flash, stable dimensions, smooth demolding, and reliable fitting performance.

Common Problems and SENLAN’s Solution Logic

Problem 1: Dimensional Stability and Post-Shrinkage

What Customers Often See

A nozzle cap may meet the drawing shortly after molding, but after several hours or one day, the dimensions may shift. This is especially common when the product uses semi-crystalline materials such as PP, PE, POM, or PA.

Critical dimensions may include inner diameter, outer diameter, sealing land, thread fit, snap-fit structure, cap height, and outlet protection area. If these dimensions drift, the final product may show poor fitting, unstable sealing, loose assembly, or excessive assembly force.

SENLAN’s Technical View

Dimensional stability is not only a mold machining issue. It is also affected by material shrinkage, post-shrinkage, cooling balance, packing conditions, and cavity-to-cavity consistency.

For nozzle caps with sealing or fitting requirements, we do not recommend judging the mold only by fresh molded samples. The final dimension should be confirmed after the part reaches a stable condition.

How SENLAN Solves It

For critical sealing and fitting dimensions, SENLAN recommends a steel-safe strategy during mold manufacturing. Steel-safe means that certain mold areas are intentionally kept with correction allowance. After the first mold trial, we review real measured data and then fine-tune the cavity, core, sealing, or fitting features based on actual shrinkage results.

For nozzle cap projects, we may recommend first trial dimensional inspection, cavity-by-cavity measurement, 24-hour or 48-hour post-molding dimension review, steel-safe correction for sealing areas, and inspection report before final approval.

Problem 2: Cooling Imbalance and Warpage

What Customers Often See

Nozzle caps are often small thin-wall parts. They cool quickly, but they are also sensitive to mold temperature differences. If one side of the mold is hotter than another, the part may shrink unevenly and show warpage, ovality, mouth deformation, unstable cap fitting, inconsistent sealing, or different dimensions between cavities.

SENLAN’s Technical View

Mold temperature is one of the most important factors in nozzle cap production. A mold that cools unevenly may still produce acceptable parts at the beginning, but quality can become unstable during long production runs.

Sometimes the real problem is not the original cooling design, but cooling channel maintenance. Water scale, blockage, low flow, or uneven water temperature may gradually create production variation.

How SENLAN Solves It

During DFM and mold component review, SENLAN pays attention to cooling-related risks around thin-wall areas, sealing areas, and heat-concentrated zones.

For precision mold components, we support stable production by focusing on accurate core and cavity insert machining, stable insert fitting, cooling-related structure review, inspection of critical functional surfaces, cavity-to-cavity consistency, and replaceable component repeatability.

Problem 3: Short Shot and Air Traps

What Customers Often See

Nozzle caps often contain thin walls, ribs, snap-fit areas, sealing edges, or small steps. If the melt cannot completely fill the cavity, the product may show short shot, incomplete thin edges, weak functional details, burn marks, obvious weld lines, or unstable surface quality.

SENLAN’s Technical View

Short shot is not always caused by insufficient machine pressure. In many cases, it is caused by poor venting. When the melt enters the cavity quickly, air must escape. If air is trapped at the flow end, the plastic cannot fully fill the area.

If pressure is increased blindly, the result may be flash, burn marks, or excessive internal stress.

How SENLAN Solves It

SENLAN usually recommends checking the flow path first. We review short-shot samples, gate size, gate location, flow length, wall thickness distribution, venting at the flow end, parting-line venting, insert venting, ejector venting, and cavity surface finish.

For thin-wall nozzle caps, the goal is to create a stable path for both plastic flow and air escape. A well-designed venting strategy can reduce short shot without relying only on aggressive injection parameters.

Problem 4: Flash Around Parting Lines and Sealing Areas

What Customers Often See

Flash is one of the most common nozzle cap mold problems. It may appear around the parting line, thread, sealing surface, outlet hole, or thin edge.

Flash may cause poor appearance, extra trimming work, burrs near functional areas, leakage risk, assembly problems, and higher rejection rates. In high-cavity molds, flash may appear in only one or two cavities at first, then gradually spread as the mold wears.

SENLAN’s Technical View

Flash should not be solved only by reducing injection pressure or increasing clamp force. These adjustments may temporarily reduce flash, but they may also cause short shot, stress, or dimensional instability.

The first step is to identify where the flash appears. If flash appears around the whole part, the cause may be clamp force, injection pressure, mold fit, or overall shut-off condition. If flash appears only in certain cavities, the cause may be local cavity wear, loose inserts, parting-line damage, or vent abnormality.

How SENLAN Solves It

For nozzle cap molds, SENLAN focuses on the stability of the mold components that control shut-off and sealing areas.

We check parting-line fit, insert matching, shut-off surface accuracy, vent depth, cavity insert wear, core alignment, steel hardness, possible insert looseness, and cavity-specific flash patterns.

For high-volume production, we recommend cavity numbering and regular inspection of wear-prone areas. Maintenance is usually cheaper than emergency repair after flash becomes a batch-quality issue.

Problem 5: Holding Pressure and Gate Freeze Time

What Customers Often See

A nozzle cap may show unstable weight, sink marks, dimensional shortage, or poor sealing accuracy. In many cases, the problem is connected with holding pressure and gate freeze time.

If the gate freezes too early, holding pressure can no longer push material into the cavity. If holding pressure is too high or too long, the product may show internal stress, flash, demolding difficulty, or later deformation.

SENLAN’s Technical View

Holding pressure should not be judged only by pressure value or time. The key is whether the gate is still open when packing is needed.

For nozzle caps with tight sealing or fitting requirements, packing must be stable enough to compensate shrinkage without creating excessive stress.

How SENLAN Solves It

SENLAN recommends using trial data to define the holding pressure window. Useful checks include product weight curve, short-shot testing, gate freeze analysis, key dimension measurement, shrinkage comparison, cavity-by-cavity data, and visual inspection of stress or deformation.

For thin-wall nozzle caps, multi-stage holding pressure may be useful. It helps control shrinkage more gradually while reducing the risk of over-packing.

Problem 6: Demolding Scratches and Insufficient Draft

What Customers Often See

Nozzle caps may have inner holes, thin walls, snap-fit structures, sealing ribs, or long core contact areas. After cooling, the part may grip tightly around the core.

If the ejection system is not stable, the product may show scratches, drag marks, whitening, deformation, out-of-round mouth, cracks, or unstable cycle time.

SENLAN’s Technical View

A nozzle cap mold should not only push the part out. It should eject the part evenly and safely without damaging functional surfaces.

If the draft angle is too small, plastic shrinkage can make the product hold onto the core. This increases friction, damages the surface, and accelerates mold wear.

How SENLAN Solves It

SENLAN recommends reviewing draft angle early in the product and mold design stage. For many nozzle cap structures, 0.5° to 1° draft angle is often a practical starting point, depending on material, texture, depth, and functional requirements.

We also support mirror polishing, core surface finish control, precision grinding, EDM texture control, demolding direction review, ejector system review, and push plate or stripper plate design review where needed.

Problem 7: Sink Marks from Uneven Wall Thickness

What Customers Often See

Nozzle caps may need local strength around sealing areas, snap-fits, ribs, or top surfaces. If a local section is too thick, it cools more slowly than the surrounding area and may create sink marks.

Other risks include internal stress, warpage, uneven shrinkage, poor surface quality, and unstable fitting.

SENLAN’s Technical View

Sink marks are often not just a process issue. They are usually connected with product structure. If the part has thick and thin areas that change sharply, molding parameters can only help to a certain degree. The better solution is often to improve the structure before cutting steel.

How SENLAN Solves It

In DFM review, SENLAN checks wall thickness distribution and identifies high-risk areas before mold manufacturing.

When possible, we recommend keeping wall thickness uniform, replacing thick solid areas with ribs, optimizing rib thickness, avoiding material accumulation, reviewing gate position and packing path, and improving holding pressure effectiveness.

Problem 8: Weld Lines in Functional Areas

What Customers Often See

Weld lines may appear where two melt fronts meet. If the weld line appears in a non-functional area, it may be acceptable. But if it appears near a sealing surface, thread area, snap-fit area, or stressed feature, it may affect strength, appearance, or sealing performance.

SENLAN’s Technical View

Weld lines are not always avoidable, but their position and strength can often be improved. The key is to review whether the weld line is located in a sensitive area.

How SENLAN Solves It

SENLAN reviews gate location, flow direction, melt-front meeting point, mold temperature, injection speed, venting, product geometry, and cavity surface finish.

Possible improvements may include changing gate position, improving venting, increasing local mold temperature, optimizing flow balance, or adjusting part structure.

Problem 9: Multi-Cavity Variation

What Customers Often See

In a multi-cavity nozzle cap mold, the average dimension may be acceptable, but individual cavities may still produce parts that are too large, too small, too tight, too loose, or more likely to flash.

This is a serious risk because products from all cavities are usually mixed together during production.

SENLAN’s Technical View

Multi-cavity production is not only about higher output. It is about keeping every cavity stable.

Common causes of cavity variation include insert machining differences, runner imbalance, cooling differences, venting differences, uneven wear, different core alignment, and poor replacement part control.

How SENLAN Solves It

SENLAN recommends cavity-numbered inspection for key dimensions during trial and mass production.

For nozzle caps, important dimensions may include inner diameter, outer diameter, sealing surface, thread area, snap-fit feature, cap height, outlet hole, and parting-line area.

By recording data by cavity number, it becomes easier to identify whether the problem is caused by overall process drift or a specific cavity issue.

Why Precision Mold Components Matter in Nozzle Cap Molds

A nozzle cap mold depends heavily on the accuracy of its critical components, including mold cores, cavity inserts, thread cores, sealing inserts, sleeves, ejector components, sliders, lifters, and replaceable inserts.

If these components are not accurate, stable, and wear-resistant, the final molded product may show repeated defects.

SENLAN manufactures precision mold components based on customer 2D drawings, 3D files, samples, or application requirements. For nozzle cap, closure, medical, packaging, and spout-related applications, precision mold components help reduce production risk before it becomes a quality complaint.

SENLAN’s Manufacturing and Inspection Support

Our manufacturing support includes CNC machining, EDM, wire EDM, grinding, polishing, heat treatment, coating, ZEISS CMM inspection, hardness testing, and dimensional inspection.

For customers who need measurable production stability rather than verbal quality claims, SENLAN’s precision machining and inspection capabilities help verify critical features such as sealing dimensions, thread-related areas, core alignment, cavity inserts, and shut-off surfaces.

SENLAN’s Project Review Checklist

Before starting a nozzle cap mold or mold component project, we recommend confirming the following information:

• product application
• plastic material
• wall thickness
• sealing requirement
• cap fitting requirement
• thread or snap-fit structure
• draft angle
• gate position
• venting requirement
• expected cavity number
• mold steel requirement
• hardness requirement
• surface finish requirement
• expected mold life
• inspection report requirement
• known production issues
• whether replaceable inserts are needed

With this information, we can better evaluate the machining route, inspection plan, and mold component strategy.

Application Areas for Nozzle Cap and Closure Mold Components

SENLAN supports nozzle cap and closure-related projects used in medical consumables, bottle caps, plastic spout closures, skincare packaging, cosmetic packaging, refill packaging, and other precision plastic applications.

For more examples of industries where fit, sealing, surface quality, and cavity consistency matter, see our application support for medical, cap, cosmetic, and packaging products.

Related Engineering Guides

If you are comparing suppliers or reviewing tooling risks for a new injection molding project, you can also read our engineering articles on injection molding and precision mold components.

How SENLAN Helps Customers Reduce Risk

SENLAN does not only manufacture mold components according to drawings. We also help customers think about how these components will work inside the mold.

For nozzle cap and closure-related projects, we focus on:

• sealing stability
• fit-critical dimensions
• mold component accuracy
• parting-line control
• wear resistance
• demolding stability
• multi-cavity consistency
• replacement part repeatability
• long-term mold maintenance

Our goal is to help customers reduce hidden production risks such as flash, leakage, unstable cap fitting, premature mold wear, and cavity-to-cavity variation.

Final Thought

Nozzle cap injection mold problems are rarely caused by only one factor.

Flash, short shot, sink marks, weld lines, warpage, scratches, and dimensional instability may come from product design, material behavior, mold structure, mold component accuracy, processing conditions, or maintenance control.

At SENLAN, we believe the best solution is to identify these risks before mold manufacturing begins.

For nozzle cap, closure, medical, packaging, and plastic spout closure projects, stable production depends on precision mold components, practical DFM review, reliable machining, and measurable inspection data.

A good mold should not only produce a good first sample. It should support stable, repeatable, and maintainable production.

FAQ

Why do nozzle cap molds often have flash?

Flash may be caused by worn parting lines, poor shut-off fit, insufficient clamp force, loose inserts, excessive injection pressure, or abnormal venting. SENLAN usually checks mold structure and component wear before relying only on process adjustment.

Why do nozzle caps deform after molding?

Deformation may come from cooling imbalance, uneven wall thickness, material shrinkage, internal stress, or poor ejection. For semi-crystalline materials, post-shrinkage should also be considered.

How much draft angle is needed for nozzle caps?

A draft angle of 0.5° to 1° is often a practical starting point, depending on material, texture, product depth, and functional requirements. Deep or textured surfaces may need more draft.

Why is cavity-to-cavity consistency important?

In multi-cavity production, one unstable cavity can create repeated quality problems. Cavity-by-cavity inspection helps identify whether the issue is caused by one cavity or by overall process variation.

What mold components are important for nozzle cap molds?

Important components include mold cores, cavity inserts, thread cores, sealing inserts, sleeves, core pins, ejector components, sliders, lifters, and replaceable inserts.

What information should I send for a nozzle cap mold component quotation?

Useful information includes 2D drawings, 3D files, product material, tolerance requirements, surface finish, expected cavity number, production volume, mold steel requirement, and any known problems such as flash, leakage, poor fitting, or demolding scratches.
